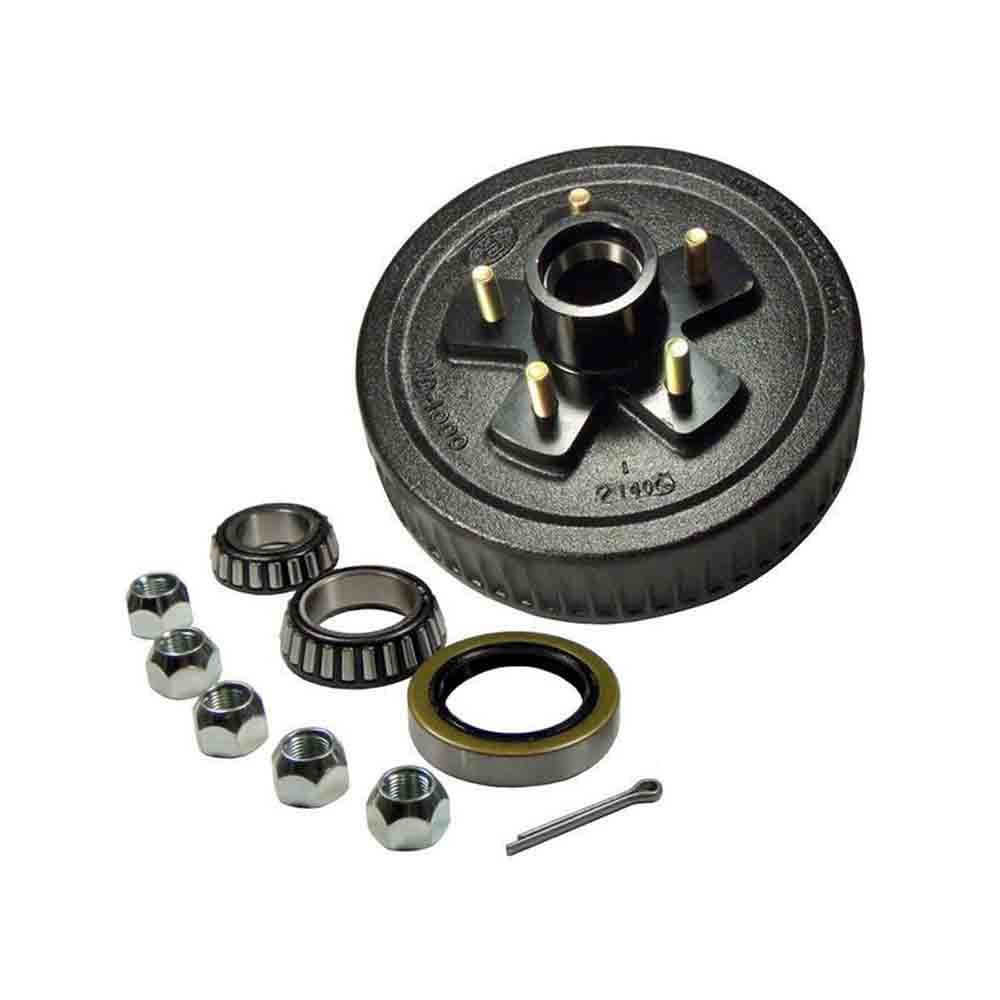

Trailer Hub And Drum Assembly 5 On 4-1/2" Bolt Circle, 1,750lb Capacity For 1-3/8" To 1-1/16" Tapered Spindle W/EZ Lube Cap & Plug (HD-1000-04-EZ)
10" Hub and Drum has 5 on 4-1/2" bolt circle for a 1-3/8" To 1-1/16" tapered spindle for 3,500lb axle with a hub capacity of 1,750lbs. Includes pressed in bearing races. 1/2"-20 lugs.
2" deep inside for use with 10" x 2" electric or hydraulic brakes.
Hub assembly includes:
L-68149 (1-3/8" I.D) Inner Bearing
L-44649 (1-1/16" I.D) Outer Bearing
SL-172 (1.72 I.D) Grease Seal
SCP-100 Cotter Pin
EZ Lube Dust Cap & Plug
(5) 1/2"-20 STN-506 Lug Nuts
NOTE: This kit does not include the castle nut. You must use your existing nut for installation.
10" Hub and Drum has 5 on 4-1/2" bolt circle for a 1-3/8" To 1-1/16" tapered spindle for 3,500lb axle with a hub capacity of 1,750lbs. Includes pressed in bearing races. 1/2"-20 lugs.
2" deep inside for use with 10" x 2" electric or hydraulic brakes.
Hub assembly includes:
L-68149 (1-3/8" I.D) Inner Bearing
L-44649 (1-1/16" I.D) Outer Bearing
SL-172 (1.72 I.D) Grease Seal
SCP-100 Cotter Pin
EZ Lube Dust Cap & Plug
(5) 1/2"-20 STN-506 Lug Nuts
NOTE: This kit does not include the castle nut. You must use your existing nut for installation.
Original: $74.40
-70%$74.40
$22.32Description
10" Hub and Drum has 5 on 4-1/2" bolt circle for a 1-3/8" To 1-1/16" tapered spindle for 3,500lb axle with a hub capacity of 1,750lbs. Includes pressed in bearing races. 1/2"-20 lugs.
2" deep inside for use with 10" x 2" electric or hydraulic brakes.
Hub assembly includes:
L-68149 (1-3/8" I.D) Inner Bearing
L-44649 (1-1/16" I.D) Outer Bearing
SL-172 (1.72 I.D) Grease Seal
SCP-100 Cotter Pin
EZ Lube Dust Cap & Plug
(5) 1/2"-20 STN-506 Lug Nuts
NOTE: This kit does not include the castle nut. You must use your existing nut for installation.
