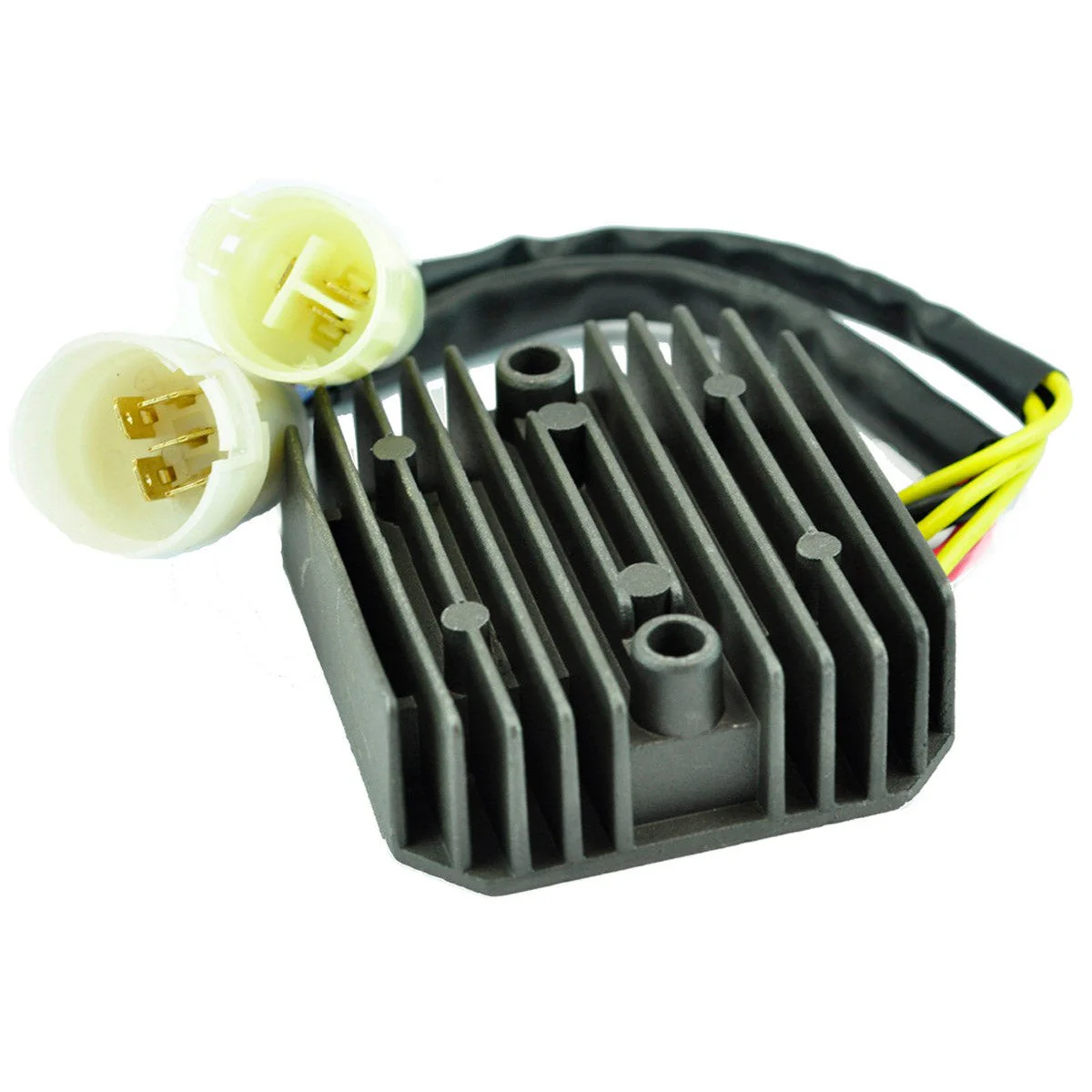

RMStator Voltage Regulator Rectifier RM30W02

Brand new voltage regulator rectifier

• Direct replacement to your original unit.
• Plug-and-play, direct fit, easy installation.
• No assembly required
• Higher grade of electric components.

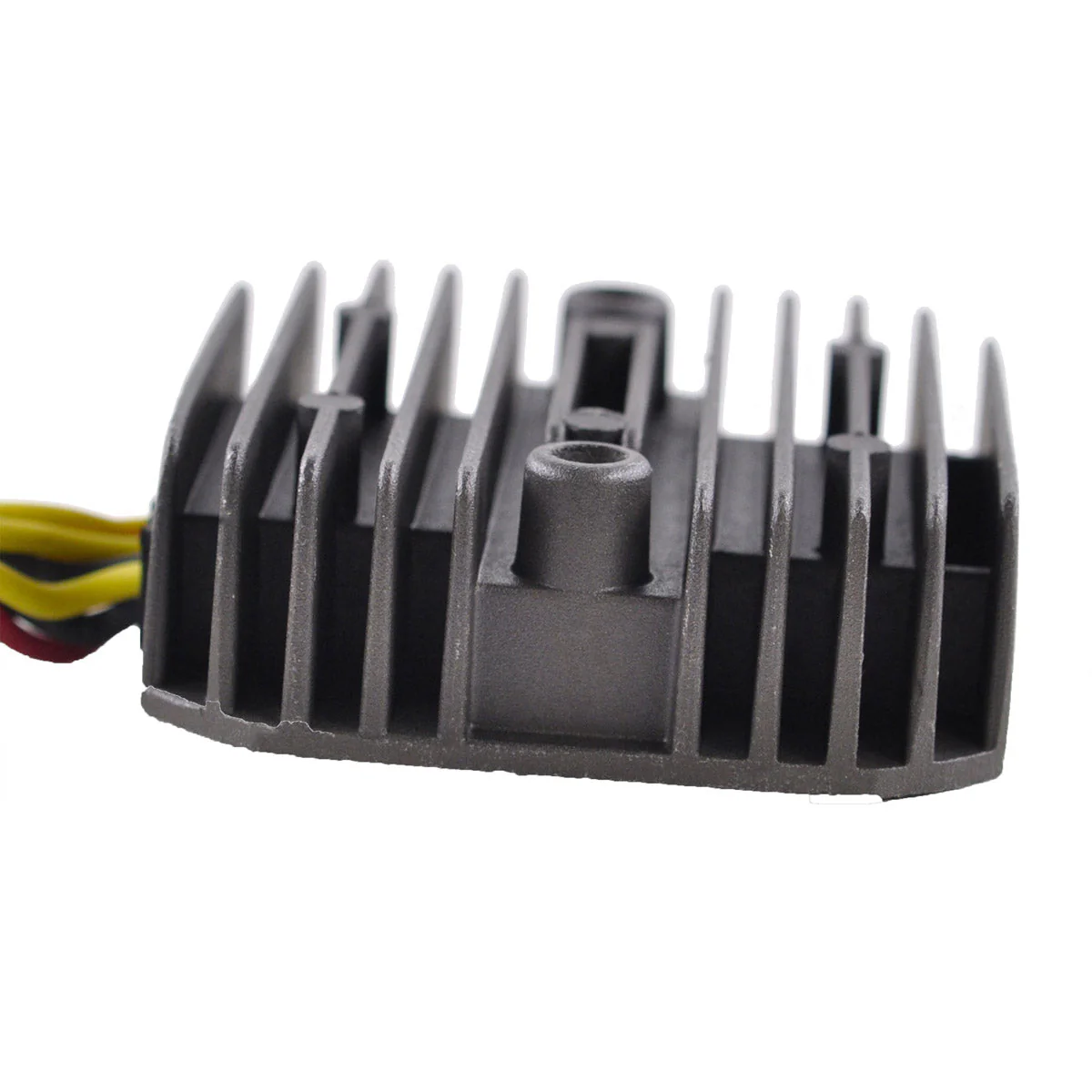

• Improved heat sink and charging capabilities
• The quality exceeds the OEM equipment
• All products shipped are tested

*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Technical Data

Dimensions :
Width : 80mm
Length : 90mm
Height: 28mm
Fixation holes center to center : 70mm
Wires length: 200mm

Other specifications :

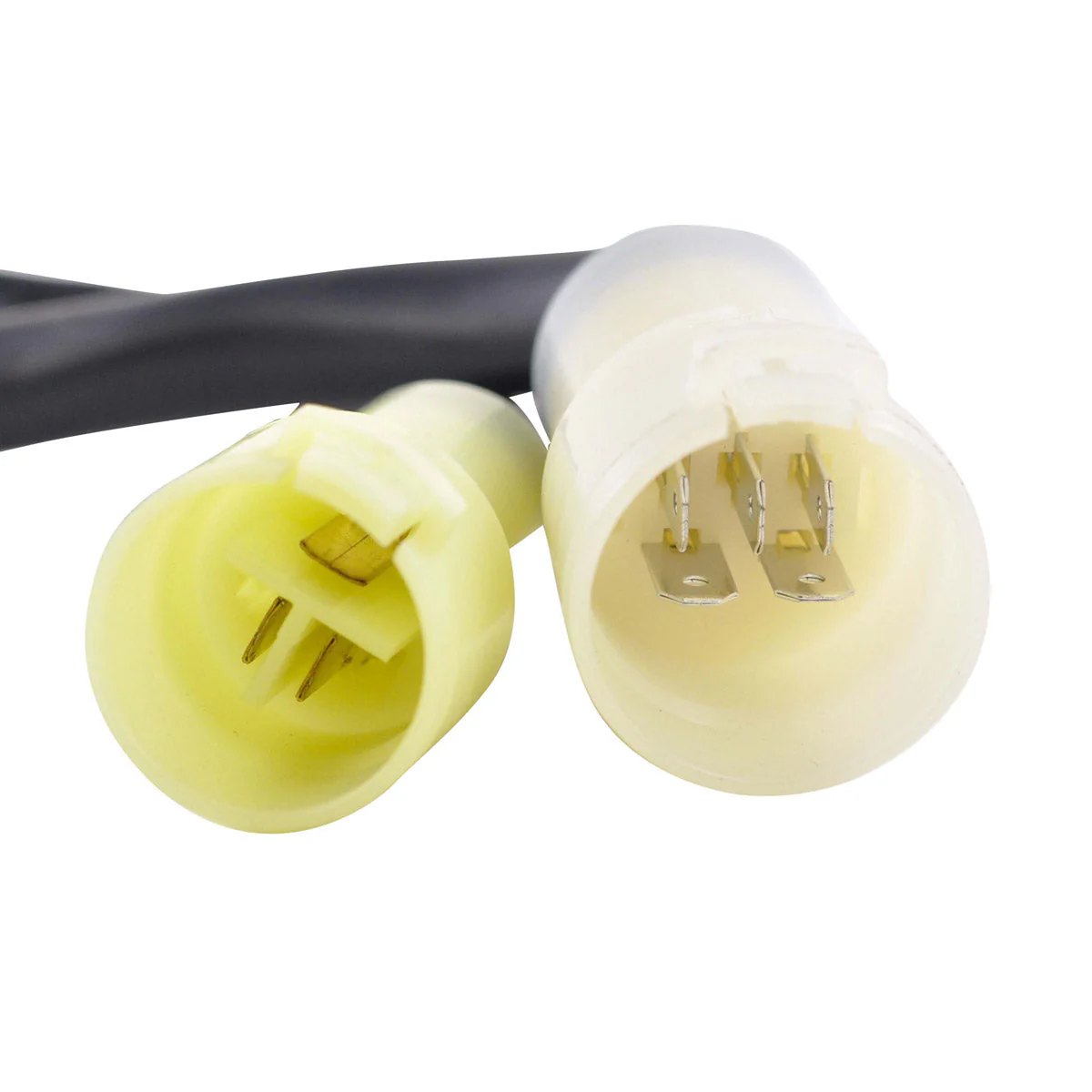

Number of plugs : 2
Number of pins : 8
Minimum Charging Voltage: 14.5V +/- 0.5V
Maximum Charging Current: 25A-35A/300W-500W
Open Circuit Voltage: <15V
Operation Temperature: -20? to 85?

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RM30W02

Fitment:

• 1999-2004 Kawasaki Bayou 300 KLF300B
• 1999-2004 Kawasaki Bayou 300 KLF300C 4x4
• 2005-2013 Kawasaki Brute Force 650 KVF650D 4x4
• 2004-2009 Kawasaki KFX700
• 1999-2002 Kawasaki Prairie 300 KVF300A 4x4
• 2003-2012 Kawasaki Prairie 360 KVF360A 4x4
• 1999-2002 Kawasaki Prairie 400 KVF400A 4x4
• 2002-2003 Kawasaki Prairie 650 KVF650A 4x4
• 2004-2006 Kawasaki Prairie 700 KVF700A 4x4
• 2004-2005 Suzuki Twin Peaks 700 LTV700F 4x4

Note: Image is for reference only, actual product may vary slightly.

OEM Numbers:
21066-0047,21066-1112,K2106-60047,K2106-61112
