RMStator Stator And Crankcase Cover Gasket Kit RM01020G

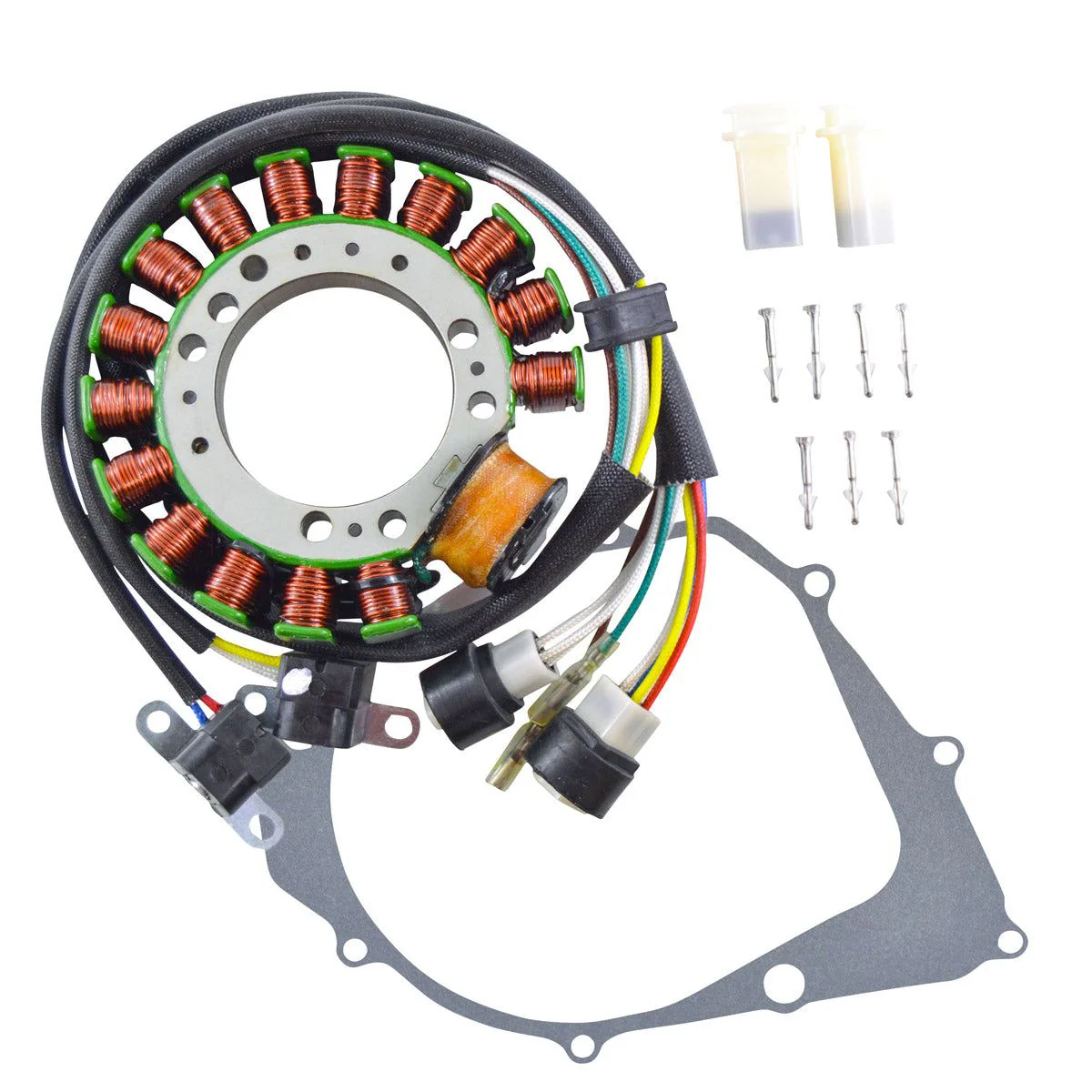

Brand new kit stator + crankcase cover gasket

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil included
• Connector included
• Rubber grommet included
• All product shipped are tested

(Note: for some models you will need to reinstall one oem connector)

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Technical Data

Stator Dimensions :
Interior diameter: 54 mm
Exterior diameter: 115 mm
Thickness: 15 mm
Length of wires stator to grommet: 200mm
Length of wires grommet to plug: 475mm
Length of wires pickup coil's wire to grommet: 220mm

Other specifications:

Number of wires : 9
Number of plugs: 4
Number of terminals : 9

Wire to wire resistance:

Alternator : White between each White = 0.4 ohms+/-20%
Pick up 1 : Red to Blue = 221 ohms+/-20%
Pick up 2 :Yellow to White = 217 ohms+/-20%
Source : Brown to Green = 315 ohms+/-20%

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RM01020G

Fitment:

• 1987 Yamaha Big Bear 350 YFM350FW 4x4
• 1987 Yamaha Warrior 350 YFM350X

Note: Image is for reference only, actual product may vary slightly.

OEM Numbers:
RM01020G-R00
