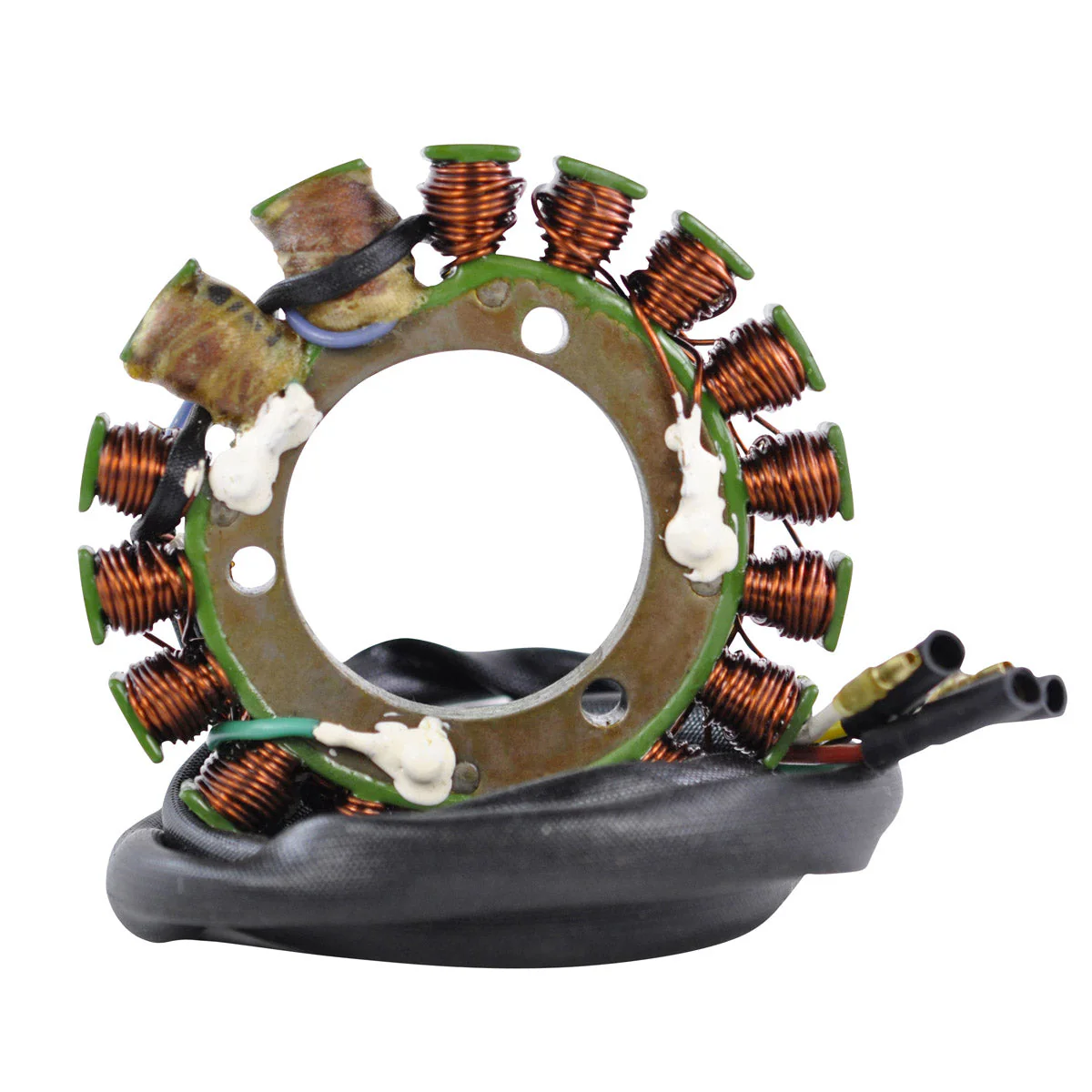

RMStator High Output Stator RM01050S

Brand new high output Stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius.
• Connector included
• Rubber grommet included
• All products shipped are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Technical Data

Dimensions:
Interior diameter: 54 mm
Exterior diameter: 115 mm
Thickness: 15 mm
Length of wires stator to grommet: 130 mm

Other specifications:

Number of wires: 5
Number of plugs: 5
Number of pins: 5

Wire to wire resistance:

Alternator: White to Green = 0.4 ohms +/-20%
Alternator: Yellow to Red = 0.4 ohms +/-20%
Source: Green to Red/Black = 140 ohms +/-20%

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RM01050S

Fitment:

• 1983-1987 Honda XL600R
• 1983-1985 Honda XR350R
• 1983-1984 Honda XR500R Pro Link 500
• 1985-1990 Honda XR600R

Note: Image is for reference only, actual product may vary slightly.

OEM Numbers:
31120-KF0-004,31120-KF0-771,31120-KN5-004,31120-KN5-406,31120-KN5-416,31120-MG2-005,31120-MG2-015,31120-MG3-000,31120-MG3-005,31120-MG3-015
