RMStator Generator Stator RM01350

Brand new aftermarket stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connector included
• Rubber grommet included
• All products shipped are tested

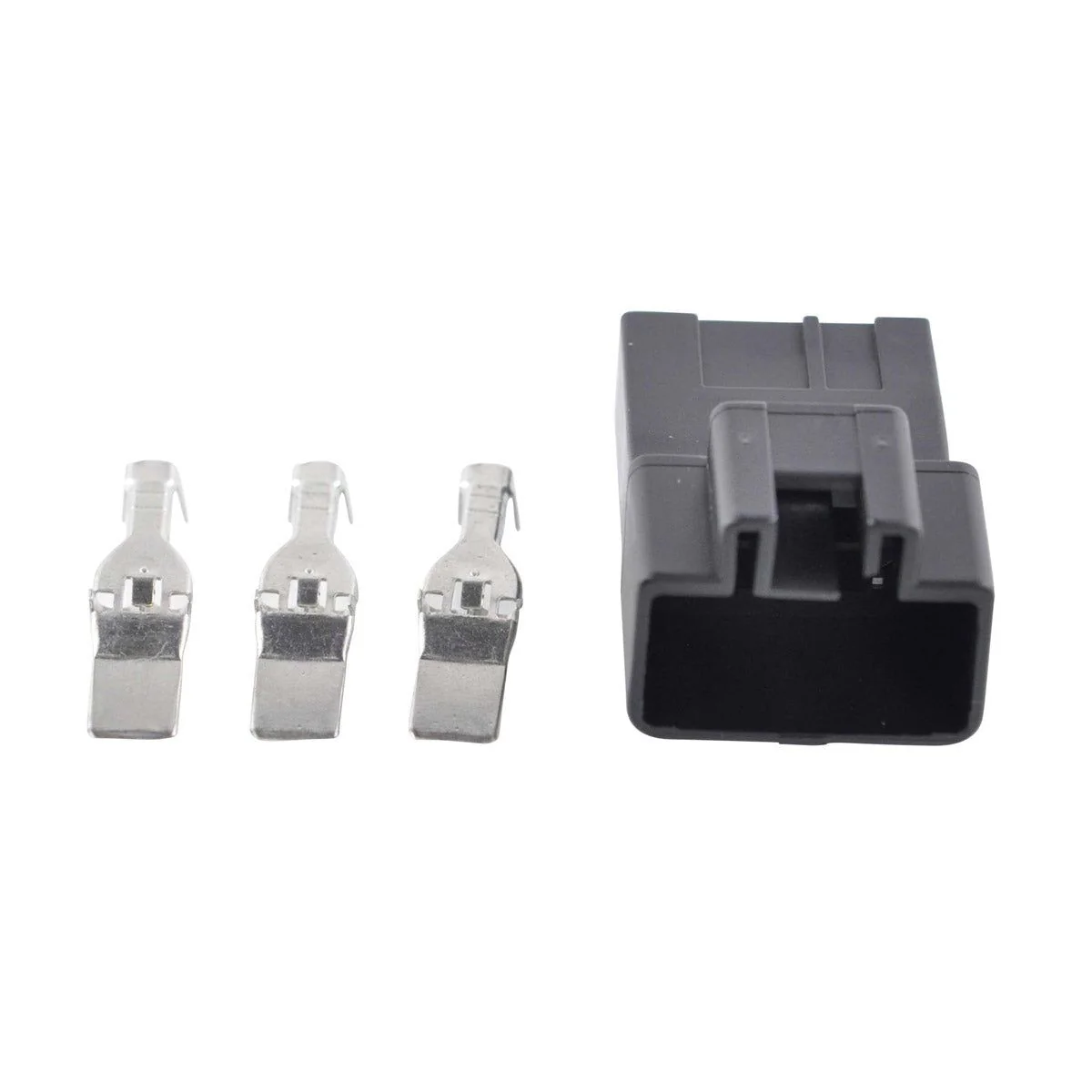

We have even included the opposite connector (main harness side), as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Technical Data

Dimensions :

Interior diameter : 42 mm
Exterior diameter : 105 mm
Thickness : 17 mm
Length of wires stator to grommet : 90 mm
Length of wires grommet to plug : 300 mm

Other specifications :

Number of wires : 3
Number of plugs : 1
Number of pins : 3

Wire to wire resistance :

Alternator : Between each White = 0.4 ohms +/-20%

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RM01350

Fitment:

• 2009-2012 Aprilia RSV4 Factory 1000
• 2009-2012 Aprilia RSV4 R 1000
• 2011-2012 Aprilia Tuono V4R 1000
• 2006-2007 Kawasaki Ninja ZX10R ZX1000

Note: Image is for reference only, actual product may vary slightly.

OEM Numbers:
21003-0036,21003-0052,21003-0054,857201
