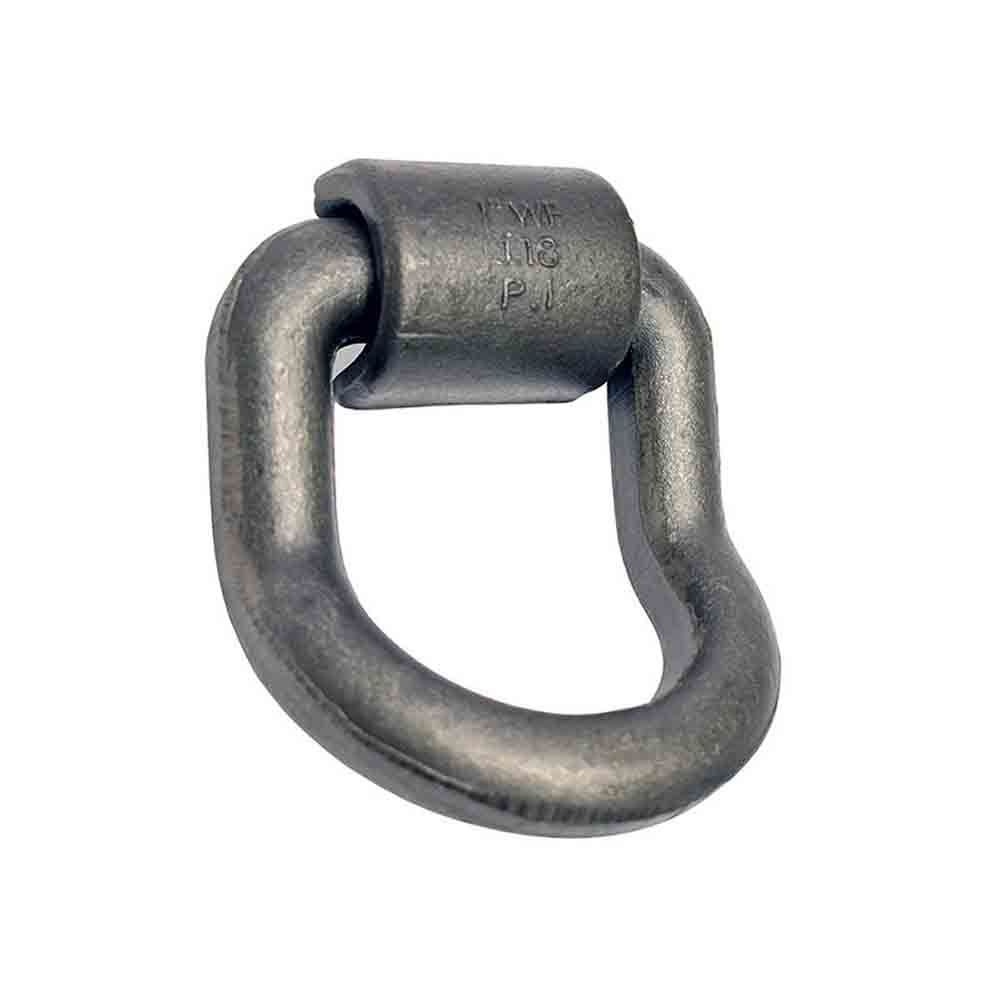

Heavy Duty Weld-On Angled Tie-Down Ring
Surface mounted Heavy Duty Weld-On Angled Tie-Down Ring for trucks and trailers. Unfinished steel 1 inch D-Ring measures 5 inches x 6 inches O.D., 3 inches x 4 inches I.D. Rated 15,000 pounds working load limit, 46,758 pounds maximum breaking strength. Includes forged weld-on mounting bracket. Wallace Forge part number 2330223.
- Per federal D.O.T. requirements, working load limit is 1/3 of the rated capacity
- Lower half of 1 inch diameter ring is formed at a 55 degree angle to extend from mounting surface
- Ring is supplied with a 2-1/8" wide forged weld-on mounting bracket
- Dimensions:Â Ring - 1" Diameter, Bracket 2-1/8" Wide x 3/8" Thick
- Capacity: Working load limit - 15,000 lbs., Max break strength - 46,758 lbs.
- Mounting Style: Weld-On
- Finish: Unplated Natural Finish
- Wallace Forge part number 2330223
Surface mounted Heavy Duty Weld-On Angled Tie-Down Ring for trucks and trailers. Unfinished steel 1 inch D-Ring measures 5 inches x 6 inches O.D., 3 inches x 4 inches I.D. Rated 15,000 pounds working load limit, 46,758 pounds maximum breaking strength. Includes forged weld-on mounting bracket. Wallace Forge part number 2330223.
- Per federal D.O.T. requirements, working load limit is 1/3 of the rated capacity
- Lower half of 1 inch diameter ring is formed at a 55 degree angle to extend from mounting surface
- Ring is supplied with a 2-1/8" wide forged weld-on mounting bracket
- Dimensions:Â Ring - 1" Diameter, Bracket 2-1/8" Wide x 3/8" Thick
- Capacity: Working load limit - 15,000 lbs., Max break strength - 46,758 lbs.
- Mounting Style: Weld-On
- Finish: Unplated Natural Finish
- Wallace Forge part number 2330223
Original: $20.99
-70%$20.99
$6.30Description
Surface mounted Heavy Duty Weld-On Angled Tie-Down Ring for trucks and trailers. Unfinished steel 1 inch D-Ring measures 5 inches x 6 inches O.D., 3 inches x 4 inches I.D. Rated 15,000 pounds working load limit, 46,758 pounds maximum breaking strength. Includes forged weld-on mounting bracket. Wallace Forge part number 2330223.
- Per federal D.O.T. requirements, working load limit is 1/3 of the rated capacity
- Lower half of 1 inch diameter ring is formed at a 55 degree angle to extend from mounting surface
- Ring is supplied with a 2-1/8" wide forged weld-on mounting bracket
- Dimensions:Â Ring - 1" Diameter, Bracket 2-1/8" Wide x 3/8" Thick
- Capacity: Working load limit - 15,000 lbs., Max break strength - 46,758 lbs.
- Mounting Style: Weld-On
- Finish: Unplated Natural Finish
- Wallace Forge part number 2330223
