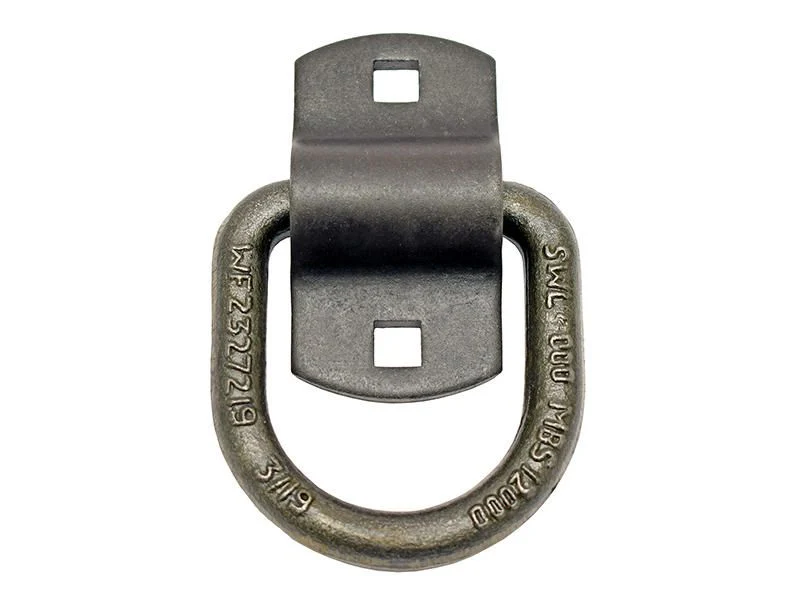

Surface mounted Heavy Duty Tie-Down D-Ring can be bolted or welded to trucks and trailers.

Unfinished steel

1/2" D-Ring (A) measures 2-1/4 (B) x 2-1/2 (C) inches I.D., 3-1/4 inches O.D. Rated 4,000 pounds working load limit, 12,000 maximum breaking strength.

Wallace Forge part number 2327219.

• Per federal D.O.T. requirements, working load limit is 1/3 of the rated capacity
• 2-Hole Bracket - 1 3/4" wide x 3/16" thick x 2-1/2" hole centers (accepts 3/8" carriage bolts) Ring - 1/2" diameter
• Working Load Limit - 4,000 lbs., Max. Break Strength - 12,000 lbs.
• Bolt On or Weld On
• Unplated natural finish
• Mounting hardware not included
• D-rings and clips are weldable
